Portable weighbridges (weigh scales) are smaller in size and can be easily shifted from one place to another. It can be placed on any stable surface for weighing and dismantled easily for use in another location. It is suitable for temporary sites where a permanent weighbridge may not be economical to install.

Here are the 8 Advantages of Portable Weighbridge in Construction Projects

1. Temporary Sites: Construction companies don’t have a permanent site for work. Depending on the new projects identified, men, equipment and materials have to be transported to the new location. Portable weighbridges are best suited for temporary sites.

2. Quick Installation: Portable weighbridges are light-weight and can be easily installed on the site saving valuable time and resources.

3. Low Set up costs: Compared to a permanent weighbridge, a portable weighbridge is economical for construction companies due to low cost of transportation and installation.

4. Precision: Portable weighbridges are capable of precise weight measurements of sand, cement, aggregates and steel. This helps in ensuring quality of construction by blending the right mix of materials. Regular calibration and maintenance help ensure accuracy of weighing.

5. Prevent Overloading: Overloading of vehicles entering and exiting the site can be prevented contributing to safety on the site. Overloading can lead to accidents and levy of penalties by transport authorities. Overloading increases maintenance costs of vehicles due to wear and tear.

6. Inventory Management: Construction costs can go up significantly if inventories are not managed efficiently.

7. Durability and Roboustness: The harsh environmental conditions in construction sites require durable weighscales. Portable weighbridges are designed to withstand heavy loads. Use of high- quality steel helps provide strength and resistant to heavy loads.

8. Time-Sensitive: Materials and equipment have to be weighed quickly on construction sites to meet the tight deadlines and reduce delays. Portable weighbridges help complete the construction work on time and prevent cost over-runs.

In short, portable weighbridges are the ideal choice in construction sites in view of its flexibility, durability, accuracy and mobility. It helps construction industry adhere to deadlines and provide quality services to customers.

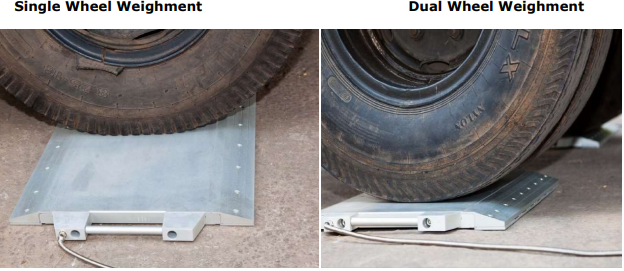

Weighpad Tech Specifications

Each pad has a capacity to weigh 20 tons with dimension L-700 mm x W-365 x H-27 mm. The two pads together can weigh an axle load of upto 40 tons.

Static Accuracy:  +-0.5%-. +-1% for Three Axle Vehicles subject to level ground for axle-by-axle weighment.

Technical details v Capacity of each pad: 20 Tons per pad (40 Tons with 2 pads) v Interval: 10kg v Static Accuracy: ±0.5% – ±1% for Three Axle Vehicles subject to Level Ground for Axle-by-Axle Weighment.

DS415 Series
· High accuracy.
· Strong and Rugged platform
· Large & bright green fluorescent display for easy readability under any conditions.
· Wide variety of platforms of different capacities & sizes to suit every weighing need.
· Battery Back-up
· Wide choice of useful options.		Electrical Specification
· Power Supply – 150v-270VAC, 50Hz
· Power Consumption – 13W
· Operating temperature / Humidity-0°C to 45°/85% RH Max (Non – condensing)
· Display Type – Green Vacuum fluorescent Display (VFD)
· Display Digit -6 Digits  · Display Size – 13mm · Number of Keys – 5 keys

Specifications

Want to learn more about weighpads? Check out our brochure.

Essae Digitronics is a leading manufacturer of portable weighbridges for application in construction, agriculture and logistics industries.  With over 17,000 installations of various types of weighbridges, Essae is po sitioned to help industry protect its profits with accuracy in weighing. To know more about Essae Portable Weighbridges and how it can contribute to productivity and profits, get in touch with us.
